Breathe Easier with AirQuality's FEU Series Ecology Unit - The Reliable Kitchen Pollution Control Solution

April 1, 2025 | Fon Zhou

Are you looking for a comprehensive and reliable solution to tackle the challenges of kitchen exhaust air pollution? AirQuality Technology is proud to present the FEU Series Ecology Unit, a cutting-edge system designed to efficiently remove oil, grease, smoke, and odors emitted from commercial kitchens and industrial applications.

Why Choose the FEU Series Ecology Unit?

Our FEU Series Ecology Unit utilizes a combination of advanced technologies to ensure cleaner air and a safer environment. It's more than just a filter; it's a complete purification system.

Key Features and Benefits:

• Advanced Filtration for Particles and Oil Mist Removal: Our Ecology Units employ multiple stages of filtration, including optional washable metallic pre-filters for high oil and grease content and high-efficiency filters like disposable panel pre-filters, pocket bag filters, rigid bag filters, and even HEPA filters for exceptional filtration efficiency.

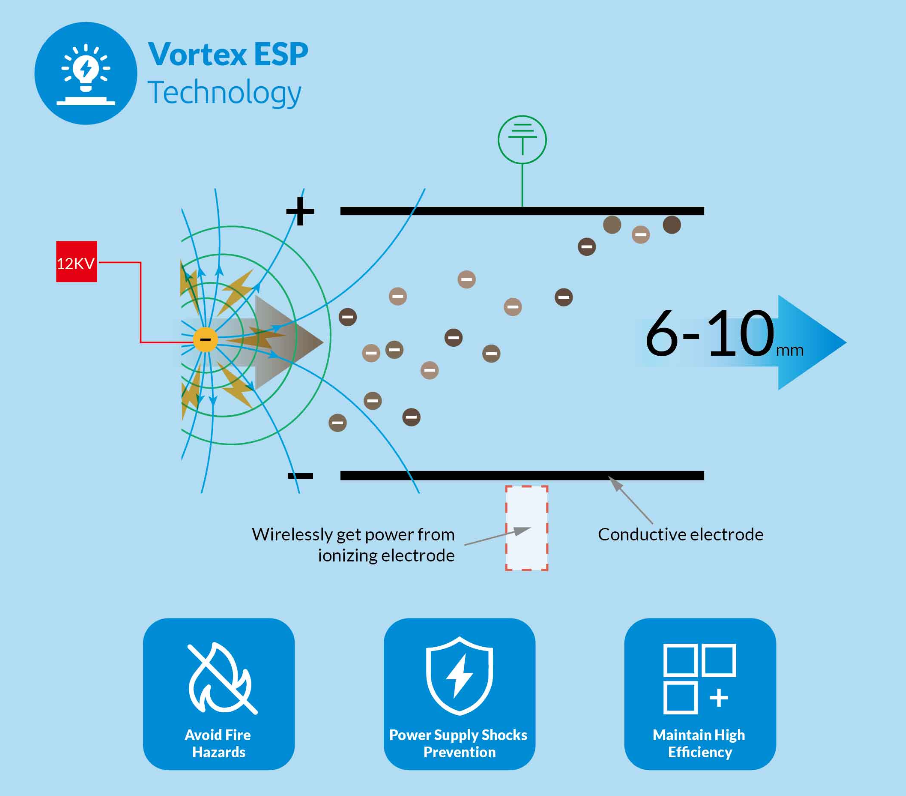

• Patented Vortex ESP (Electrostatic Precipitator) Technology: Experience superior purification with our innovative Vortex ESP technology. Made from aviation-grade aluminum with SUS304 ionization spike blades, it offers: 1) Higher purification efficiency with a large collection area and close plate spacing. Long-lasting, stable, and efficient operation with low voltage risks; 2) Enhanced reliability: The failure of one ESP cell will not affect the other cells, eliminating fire risks and preventing power supply shocks from dust collection. Unlike traditional ESP systems where the entire electric field fails upon a single cell short circuit, Vortex ESP ensures continuous operation; 3) Wireless power for negative collector plates; 4) Fast Dry Technology: A special design ensures rapid drying after washing, minimizing downtime to just 0.75 hours minimum compared to traditional designs that can take around 4-8 hours. This prevents sparking due to water droplets and eliminates efficiency loss after washing.

• Effective Odor Removal Section: Combat unpleasant odors with our versatile odor control options, including: 1) Tray Type Carbon Filters (Standard Design): Featuring high-quality activated carbon for strong adsorption and fast deodorization. 2) Canister Type Carbon Filters (Optional): With replaceable canisters for convenient maintenance. 3) V Type Pleated Rigid Carbon Filters (Optional): Maximizing media utilization for high-efficiency odor removal. 4) UV Lamps Filter (Optional): Utilizing high-power UV lamps from the USA for highly efficient deodorization and sterilization with a long service life of over 12000 hours.
• Reliable Fan Section: Choose from various high-performance centrifugal fan options, including standard DIDW belt-driven fans, optional SISW belt-driven UL 762 fans, and direct-driven smoke fans with a 400°C/2 hours fire rating and local Civil Defense Approval. Our fans are often AMCA certified and designed for efficient and durable operation.
• Robust and Hygienic Cabinet Design: The FEU Series features a double-skin unit casing with: An aluminum profile framework for rigidity. A 3mm thick galvanized steel base frame with epoxy powder coating. 0.8mm galvanized steel inner and outer skin with epoxy powder coating. Sandwiched insulation (Polyurethane Foam or ceramic fiber) for noise reduction. Gasketed and sealed joints for air tightness. Removable or hinged access doors for easy maintenance. An optional drain connection for excess oil and grease removal.
• Intelligent Control System: Our ecology units come with: An IP54-rated, epoxy-coated control panel enclosure. Digital VFD (standard) or STAR/DELTA (optional) controls for the fan/motor. A variable speed selector switch, Hands-Auto-Off switch, and alarm indicator lights. Filter status indicators. Optional remote control screen with a user-friendly touchscreen interface for fan start/stop, filter status monitoring, alarm functions, and airflow/pressure drop display. Automatic fan speed adjustment for consistent airflow based on user-defined settings and pressure drop. This is our New Constant Air Volume Regulation technology. Provision for Building Management System (BMS) integration.
• Enhanced Safety Features: Safety is paramount. The FEU Series offers optional fire dampers and the ANSUL "R-102 Wet Chemical Fire Suppression System" to protect against fire hazards in cooking areas.
• Sustainable Solution: The FEU Series is designed with sustainability in mind, potentially reducing or replacing the use of media filters and activated carbon filters. The lower pressure drop of the ESP can also save fan energy, and the use of washable components minimizes waste.

Applications:

The AirQuality FEU Series Ecology Unit is ideal for a wide range of commercial and industrial applications, including:

• Commercial Kitchens (Restaurants, Hotels, Catering)
• Food Processing Facilities
• Factories with particulate matter and oil fume pollutants

Ready to Experience the AirQuality Difference?

Invest in a cleaner, safer, and more efficient environment with the FEU Series Ecology Unit. Contact us today to discuss your specific requirements and receive a customized solution.
